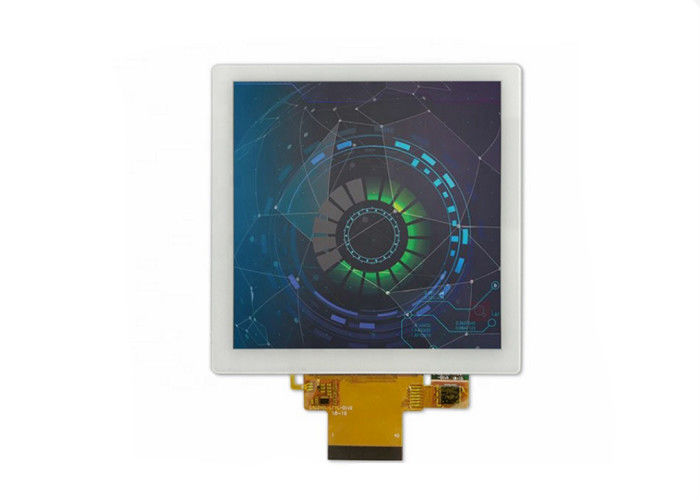

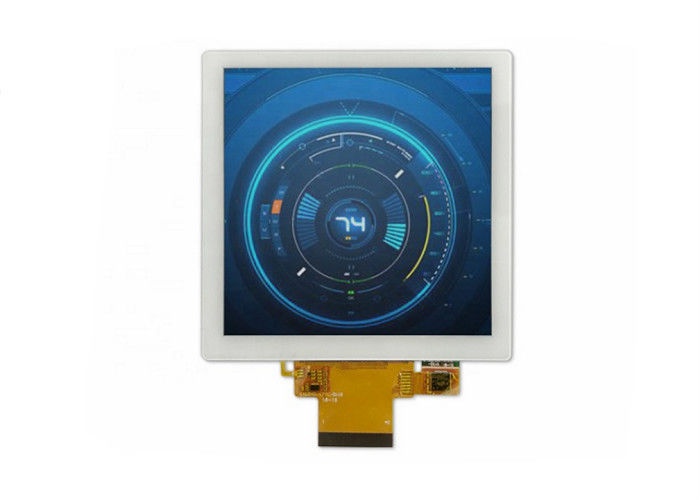

Desain Baru Lcd Module IPS Display 3.95 Inch TFT Lcd Display Module Square Lcd Display dengan Resolusi 480*480

Desain Baru Lcd Module IPS Display 3.95 Inch TFT Lcd Display Module Square Lcd Display dengan Resolusi 480*480

Detail produk:

Tempat asal: DongGuan, Tiongkok
Nama merek: Fangsheng
Sertifikasi: ISO9001:2015
Nomor model: NT40IVGM17C

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 50
Harga: Negotiation
Kemasan rincian: Tas gelembung + Blister + kotak busa + Karton
Waktu pengiriman: 3 ~ 5 hari kerja
Syarat-syarat pembayaran: L / C, T / T, D / A, D / P, Serikat Barat, Paypal
Menyediakan kemampuan: Set 200K / Bulan
Harga terbaik Kontak

Informasi Detail

Resolusi: 480 * 480 Ukuran: 3,95 Inci
Melihat Arah: Semua Modus TFT: TFT, Transmisif
Ukuran Garis Besar: 86 (T) ×86 (L) ×3,85 (T) / mm Kecerahan: 250Cd / M2
Cahaya Tinggi:

ST7701S IC Drive TFT LCD Display

,

480x480 Dots TFT LCD Display

,

ST7701S IC Drive IPS LCD Display

Deskripsi Produk

TFT Lcd 4 Inch IPS Display 3.95 Inch TFT Lcd 480 * 480 Dots Square Display dengan Produsen Lcd ST7701S


A.Spesifikasi: Tautan keUnduh NT40IVGM17C-spec.pdf





Sayawaktu Dimensi Nominal Satuan
Desain Baru Lcd Module IPS Display 3.95 Inch TFT Lcd Display Module Square Lcd Display dengan Resolusi 480*480 0
Matriks titik 480 x RGB x 480 titik
Ukuran Modul ( L × T × T ) 86 (L) x 86 (L) x 3,85 (T) mm.
Titik Pitch ( P×T ) 0,1497 (T) × 0,1462 (W) mm.
Antarmuka Antarmuka MIPI -
Paket IC Mengemudi COG + FPC -
Suhu Operasional -20 ~ 70 C
Suhu penyimpanan -30~80 C
Penggerak IC ST7701s -
Modus LCD TN/Normal Putih -
Jenis Lampu Latar LED WARNA PUTIH 10 MATI PCS

  Desain Baru Lcd Module IPS Display 3.95 Inch TFT Lcd Display Module Square Lcd Display dengan Resolusi 480*480 1 Desain Baru Lcd Module IPS Display 3.95 Inch TFT Lcd Display Module Square Lcd Display dengan Resolusi 480*480 2

 Panel Sentuh Kustom dan Ikatan



Pilihan: Resistif Kapasitif (PCAP)
Struktur CTP: GF,GFF,G+G,P+G
Ketebalan lensa penutup: 0.55,0.7,0.9,1.1,1.8,2.8(mm)...
Perawatan permukaan lensa penutup: Anti-sidik jari (AF), Anti-silau (AG), Anti-pantulan (AR)
IC pengemudi: Teknologi fokus, Goodix, ILitek, Atmel...
Laminasi Modul LCD + CTP: Gasket, OCA, LOCA





Daftar Produk:


Produk Utama: termasuk 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1 ", 13.3" Modul LCD TFT, panel Sentuh Resistif dan produk panel Sentuh Kapasitif.



Tidak Ukuran Inci format titik Ukuran Garis Besar (mm) Kontras (Cr) Lampu latar Kecerahan Antarmuka Panel Sentuhaku
1 1.44 128xRGBx128 32.36x38.0x2.6 500 1LED 240 SPI -
2 1.77 128xRGBx160 34.70x46.7x2.5 500 2LED 320 8 bit paralel -
3 2.0 176xRGBx220 37.68X51.30X2.23 500 3LED 180 8 bit paralel -
4 2.3 320xRGBx240 51.0X45.8X2.3 500 4LED 280 SPI -
5 2.36 480X234 55.2x44.75x2.9 250 2LED 250 8bit RGB -
6 2.4 240xRGBx320 42.72x60.26x2.46 250 4LED 200 8bits80 paralel -
7 2.7 240xRGBx320 62.60x45.70x2.45 400 4LED 350 8bit RGB RTP
8 2.83 240xRGBx320 50X69.2X2.4 500 4LED 250 8/16 bit paralel RTP
9 3.5 320xRGBX480 54.66X82.9X2.1 500 4LED 380 18bit RGB + SPI RTP/CTP
10 4.3 480xRGBX272 105.5X67.2X4.2 500 6LED 450 24bit RGB RTP/CTP
11 5 800xRGBX480/1024x600 120.7x75.8x4.3 400 2x5LED 480 24bit RGB RTP/CTP
12 5.7 640xRGBX480 127.0X98.4X7.0 250 2x6LED 700 18bit RGB RTP/CTP
13 6.2 800xRGBX480 155.2X88.2X6.5 600 3x7LED 250 24bit RGB RTP/CTP
14 7 800xRGBX480 1024xRGBx600 164.9X100X7.2 500 7x3LED 350 24bit RGB RTP/CTP
15 8 800xRGBX480 1024xRGBx600 183.0x141.0x6.2 500 9x3LED 500 24bit RGB RTP/CTP
16 10.1 800xRGBX480 1024xRGBx600 235.0x143.0x5.0 600 13x3LED 450 LVDS RTP/CTP



Dengan berbagai modul LCD dan TFT standar dan disesuaikan, BACKLIGHT.Kami menawarkan kepada pelanggan solusi dan teknologi yang paling cocok untuk aplikasi.


Produk kami telah diterapkan di berbagai industri termasuk perangkat keuangan, peralatan pengukur energi, mesin check-in, pemroses fiskal, perangkat portabel, solusi rumah cerdas, fasilitas medis, dan peralatan industri.

Dengan lebih dari 20 tahun pengalaman pada modul TN, IPS, LCM dan TFT, memiliki kapasitas produksi yang kuat dan
Kemampuan R&D untuk memenuhi persyaratan yang disesuaikan.



Untuk informasi lebih rinci tentang modul LCD TFT kami, jangan ragu untuk menghubungi kami:

Nona Fancy Zhang
Telp: + 86-769-22705821-815
Massa: +134 1284 8038 (whatsapp dan wechat)
Skype: +86 189 2546 1855



Email: fssales04@fsdzlcd.com atau Fancy@fsdzlcd.com
