HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

HTN LCD display for instruments

custom HTN LCD connector

segment type HTN LCD

Tempat asal:

Dongguan, Cina

Nama merek:

Fangsheng

Sertifikasi:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Nomor model:

FS-HTN

Hubungi Kami
Minta Kutipan
HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display
Rincian produk
Nama Produk:
HTN LCD Tampilan Pin Konektor Segmen Jenis HTN LCD Untuk Instrumen dan Meter Tampilan LCD Kustom
Jenis tampilan:
Htn, mode negatif
Tipe konektor:
Pin (disesuaikan)
Tipe antarmuka:
Antarmuka paralel, SPI, RS232, MCU, dll
Arah menonton:
6 jam (disesuaikan)
Tegangan operasi:
5V (disesuaikan)
Menyoroti:

HTN LCD display for instruments

,

custom HTN LCD connector

,

segment type HTN LCD

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1000
Harga
$0.1-$8
Kemasan rincian
Tas Bubble + Blister + Kotak Busa + Karton
Waktu pengiriman
25-30 hari
Syarat-syarat pembayaran
L/C, D/A, D/P, T/T, Western Union, Moneygram,
Menyediakan kemampuan
Set / bulan 200k
Produk terkait
Harga yang bagus HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display on line

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display

Dapatkan Harga Terbaik
Harga yang bagus Segmen HTN Custom ROHS Kustom LCD 7 Segmen LCD Display untuk Kontrol Industri on line

Segmen HTN Custom ROHS Kustom LCD 7 Segmen LCD Display untuk Kontrol Industri

Dapatkan Harga Terbaik
Harga yang bagus Tampilan LCD Segmen Kustom Untuk Instrumen Tampilan LCD HTN Kustom dengan Lampu Latar on line

Tampilan LCD Segmen Kustom Untuk Instrumen Tampilan LCD HTN Kustom dengan Lampu Latar

Dapatkan Harga Terbaik
Harga yang bagus PIN Logam LCD Digital Display / Segmen Layar Segmen Transflektif Positif HTN on line Video

PIN Logam LCD Digital Display / Segmen Layar Segmen Transflektif Positif HTN

Dapatkan Harga Terbaik
Hubungi Kami
+86 136 3170 3190
fssales03@fsdzlcd.com
86-769-2270-5825
Hubungi Sekarang
Deskripsi Produk

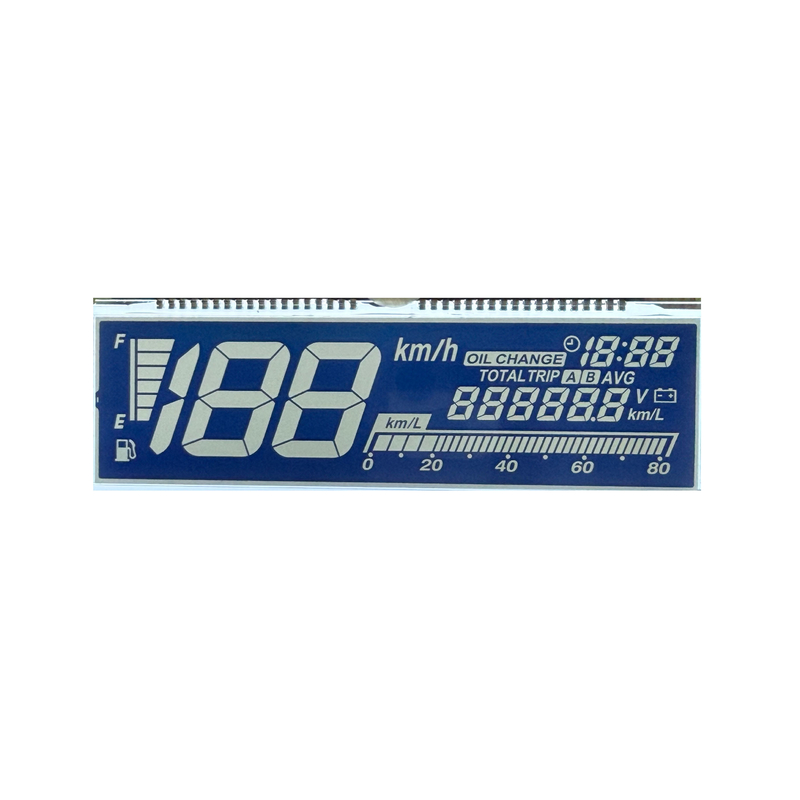

HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display
Product Specifications
Attribute Value
Product name HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display
Display Type HTN, negative mode
Connector Type PIN (Customized)
Interface type Parallel Interface, SPI, RS232, MCU, etc
Viewing Direction 6 o'clock (Customized)
Operating Voltage 5V (Customized)
Technical Specifications
Parameter Specification Description
Display Mode HTN, Negative High Transmissive Nematic, Negative mode (dark characters on bright background)
Drive Condition 1/4 Duty, 1/3 Bias LCD driving method and bias ratio
Viewing Direction 6 O'Clock Optimal viewing angle from bottom
Operating Temperature -30°C to +80°C Temperature range for normal operation
Storage Temperature -40°C to +85°C Safe storage temperature range
Operating Voltage 5.0 V Typical operating voltage
Frame Frequency 64 Hz LCD driving frame rate
Front Polarizer Transmissive, Adhesive Type and adhesive of front polarizer
Back Polarizer Transflective, Adhesive Type and adhesive of back polarizer
Connectors PIN Interface type
Key Features
HTN LCD Display PIN Connector Segment Type HTN LCD for Instruments and Meters Custom LCD Display 0
  • Simple and Clear Display - Ideal for showing numbers, letters, or basic symbols with high readability.
  • Low Power Consumption - Uses minimal energy, making it perfect for battery-powered devices.
  • Cost-Effective Solution - Economical choice for small-scale displays compared to graphic screens.
  • Durable and Long-Lasting - Resistant to long-term usage and environmental factors.
  • Easy Integration - Can be embedded into electronic devices like meters, medical instruments, and appliances.
