Name: Custom shape OLED display I2C White 0.32 inch OLED Display Panel 60x32 Pixels Smallest 0.32" OLED
Brand: HongKong Guanke Industrial Limited
SKU: FS-OLED
Price: 999.88 USD
Availability: InStock

Rumah > Produk > Modul Tampilan OLED >

Custom shape OLED display I2C White 0.32 inch OLED Display Panel 60x32 Pixels Smallest 0.32" OLED

Custom shape OLED display I2C

0.32 inch OLED display panel

Smallest 0.32 OLED module

Tempat asal:

Dongguan, Cina

Nama merek:

Fangsheng

Sertifikasi:

ISO9001:2015

Nomor model:

FS-OLED

Hubungi Kami

Minta Kutipan

Custom shape OLED display I2C White 0.32 inch OLED Display Panel 60x32 Pixels Smallest 0.32

Rincian produk

Suhu kerja:

-40 ~ 70 ℃

Arah Sudut Pandang:

Penuh

Warna:

Putih

PIN:

14 Pin

Menyoroti:

Custom shape OLED display I2C

0.32 inch OLED display panel

Smallest 0.32 OLED module

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1000

Harga

Dapat dinegosiasikan

Kemasan rincian

Tas Bubble + Blister + Kotak Busa + Karton

Waktu pengiriman

3 ~ 5 hari kerja

Syarat-syarat pembayaran

T/T, Serikat Barat, Paypal

Menyediakan kemampuan

Set / bulan 200k

Produk terkait

0.69 inci OLED Display GRAPHIC DISPLAY Module OLED HITAM 14 PIN 0,69 " SSD1315 Graphic COG

Dapatkan Harga Terbaik

2.8"Module OLED 256x64 Graphic Display OLED Display Panel 256x64 SSD1322 2.8" SPI Parallel 30 Pin Monochrome

Dapatkan Harga Terbaik

Layar Mini OLED kecil 0,91" 0,96" 1,12" 1,27" 1,54" 2,23" 2,42" 2,7" 3,12" 3,2 inci Eink Hitam Dan Putih E-ink Screen Module Eink Tampilan digital Harga Tag

Dapatkan Harga Terbaik

12864 layar OLED 1,3 inci IIC Antarmuka 128x64 layar OLED Putih/biru SPI layar OLED 1,3 inci

Dapatkan Harga Terbaik

Hubungi Kami

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Hubungi Sekarang

Deskripsi Produk

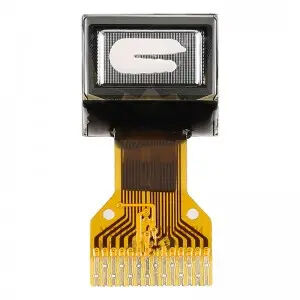

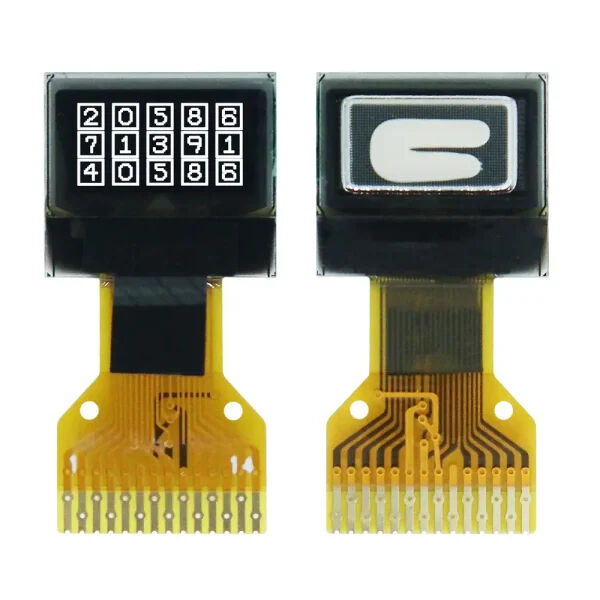

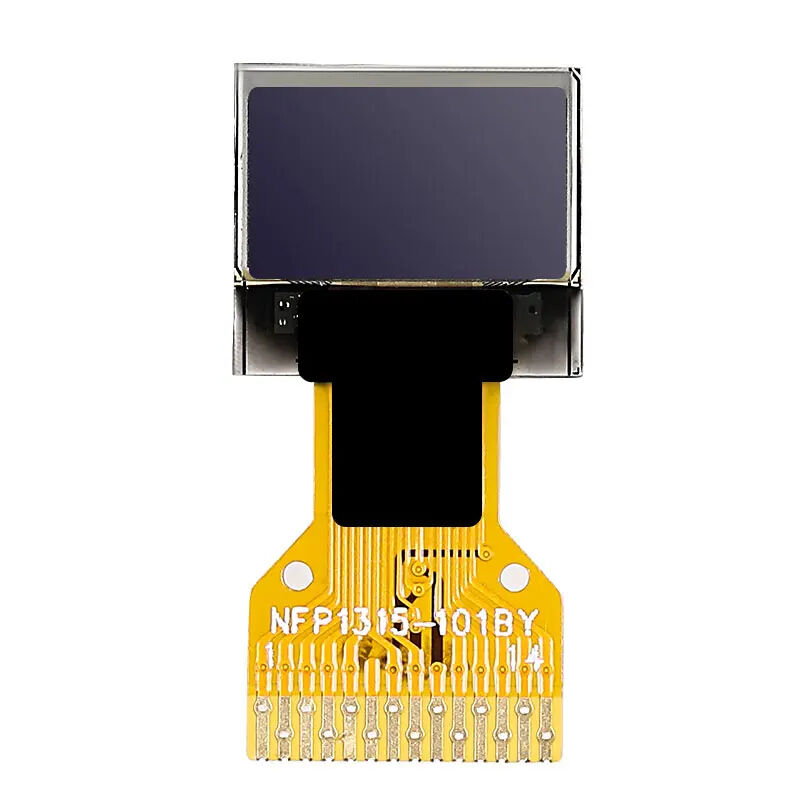

Custom Shape OLED Display I2C White 0.32 Inch OLED Display Panel

This 0.32-inch OLED display panel features 60x32 pixel resolution with I²C interface, making it one of the smallest OLED displays available at 0.32 inches.

Specifications

Item	Specification
Size	0.32-inch OLED Display
Resolution	60 × 32
Interface Type	I²C
Driver IC	SSD1315
Display Color	White

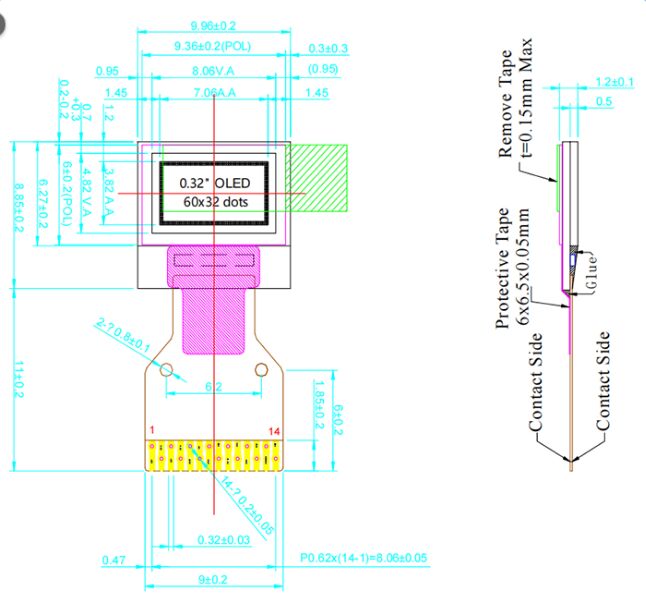

Active Area	7.06 × 3.82 (mm)
Panel Size	9.96 × 8.85 × 1.2 (mm)
Pixel Pitch	0.118 × 0.12 (mm)
Pixel Size	0.098 × 0.10 (mm)
Pin Count	14 pin (0.62 mm, Top Contact)
Viewing Direction	All View
Operating Temperature	-40 ~ 70°C
