Tempat asal:
DongGuan, Tiongkok
Nama merek:
Fangsheng
Sertifikasi:
ISO9001:2015
Nomor model:
FT23106JPY-18P
Video
Video

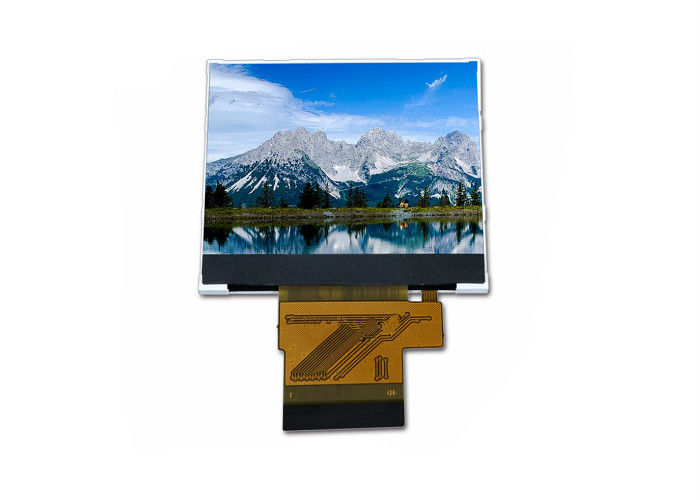

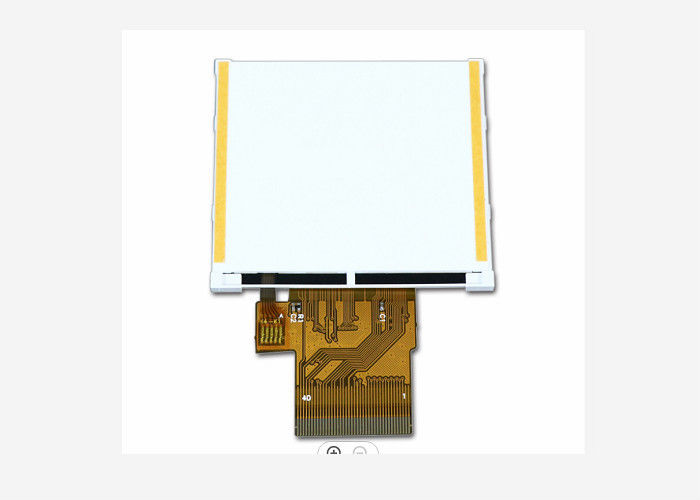

FS Lcd Display 2.31 Inch TFT Lcd 320 x 240 SPI Display Lcd TFT Lcd Display Supplier Untuk Peralatan Medis
A.Spesifikasi:Unduh Tautan ke►FT23106JPY-18P-FS.pdf
| sayawaktu | Dimensi Nominal | Satuan | |
|---|---|---|---|
| Matriks titik | 320 x RGB x 240 | titik | |
| Ukuran Modul ( L × T × T ) | 50,8 (L) x 45,82 (L) x 2,35 (T) | mm. | |
| Titik Pitch ( P×T ) | 0,153 x 0,153 | mm. | |
| Antarmuka | Antarmuka SPI 80-sistem | – | |
| Paket IC Mengemudi | COG + FPC | – | |
| Suhu Operasional | -20 ~ 70 | C | |
| Suhu penyimpanan | -30~80 | C | |
| Penggerak IC | ST7789 | – | |
| Modus LCD | TN/Normal Putih | – | |
| Jenis Lampu Latar | LED PUTIH 4-MATI | PCS |
Panel Sentuh Kustom dan Ikatan
| Pilihan: | Resistif Kapasitif (PCAP) |
| Struktur CTP: | GF,GFF,G+G,P+G |
| Ketebalan lensa penutup: | 0.55,0.7,0.9,1.1,1.8,2.8(mm)... |
| Perawatan permukaan lensa penutup: | Anti-sidik jari (AF), Anti-silau (AG), Anti-pantulan (AR) |
| IC pengemudi: | Teknologi fokus, Goodix, ILitek, Atmel... |
| Laminasi Modul LCD + CTP: | Gasket, OCA, LOCA |
Daftar Produk:
Produk Utama: termasuk 1.44",1.5",1.54",1.77", 2.0",2.4", 2.7", 2.8", 3.0",3.5", 4.3", 5.0", 7.0", 8.0", 9.7",10.1 ", 13.3" Modul LCD TFT, panel Sentuh Resistif dan produk panel Sentuh Kapasitif.
| Tidak | Ukuran Inci | format titik | Ukuran Garis Besar (mm) | Kontras (Cr) | Lampu latar | Kecerahan | Antarmuka | Panel sentuh |
| 1 | 1.44 | 128xRGBx128 | 32.36x38.0x2.6 | 500 | 1LED | 240 | SPI | - |
| 2 | 1.77 | 128xRGBx160 | 34.70x46.7x2.5 | 500 | 2LED | 320 | 8 bit paralel | - |
| 3 | 2.0 | 176xRGBx220 | 37.68X51.30X2.23 | 500 | 3LED | 180 | 8 bit paralel | - |
| 4 | 2.3 | 320xRGBx240 | 51.0X45.8X2.3 | 500 | 4LED | 280 | SPI | - |
| 5 | 2.36 | 480X234 | 55.2x44.75x2.9 | 250 | 2LED | 250 | 8bit RGB | - |
| 6 | 2.4 | 240xRGBx320 | 42.72x60.26x2.46 | 250 | 4LED | 200 | 8bits80 paralel | - |
| 7 | 2.7 | 240xRGBx320 | 62.60x45.70x2.45 | 400 | 4LED | 350 | 8bit RGB | RTP |
| 8 | 2.83 | 240xRGBx320 | 50X69.2X2.4 | 500 | 4LED | 250 | 8/16 bit paralel | RTP |
| 9 | 3.5 | 320xRGBX480 | 54.66X82.9X2.1 | 500 | 4LED | 380 | 18bit RGB + SPI | RTP/CTP |
| 10 | 4.3 | 480xRGBX272 | 105.5X67.2X4.2 | 500 | 6LED | 450 | RGB 24 bit | RTP/CTP |
| 11 | 5 | 800xRGBX480/1024x600 | 120.7x75.8x4.3 | 400 | 2x5LED | 480 | RGB 24 bit | RTP/CTP |
| 12 | 5.7 | 640xRGBX480 | 127.0X98.4X7.0 | 250 | 2x6LED | 700 | 18bit RGB | RTP/CTP |
| 13 | 6.2 | 800xRGBX480 | 155.2X88.2X6.5 | 600 | 3x7LED | 250 | RGB 24 bit | RTP/CTP |
| 14 | 7 | 800xRGBX480 1024xRGBx600 | 164.9X100X7.2 | 500 | 7x3LED | 350 | RGB 24 bit | RTP/CTP |
| 15 | 8 | 800xRGBX480 1024xRGBx600 | 183.0x141.0x6.2 | 500 | 9x3LED | 500 | RGB 24 bit | RTP/CTP |
| 16 | 10.1 | 800xRGBX480 1024xRGBx600 | 235.0x143.0x5.0 | 600 | 13x3LED | 450 | LVDS | RTP/CTP |
Dengan berbagai macam modul LCD dan TFT standar dan disesuaikan, BACKLIGHT.Kami menawarkan kepada pelanggan solusi dan teknologi yang paling cocok untuk aplikasi.
Untuk informasi lebih rinci tentang modul LCD TFT kami, jangan ragu untuk menghubungi kami:
Nona Fancy Zhang
Telp: + 86-769-22705821-815
Massa: +134 1284 8038 (whatsapp dan wechat)
Skype: +86 189 2546 1855
Email: fssales04@fsdzlcd.com atau Fancy@fsdzlcd.com
Kirim pertanyaan Anda langsung ke kami
