Tempat asal:
DongGuan, Tiongkok
Nama merek:
Fangsheng
Sertifikasi:
ISO9001:2015
Nomor model:
FT3001JPY-40P
Video
Video

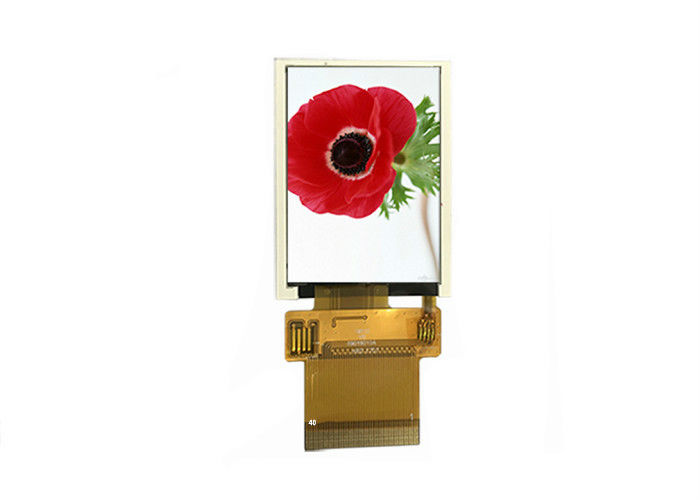

Layar Lcd Dapat Dibaca Sinar Matahari Layar Lcd TFT 3 Inch Semua Melihat Malaikat TFT Lcd Display 240 x 400 Dots Modul Layar Sentuh Lcd
A.Spesifikasi: Unduh Tautan keFT3001JJPY-40P-FS.pdf
| Barang | Dimensi Nominal | Satuan |
|---|---|---|
| Matriks titik | 240 x RGB x 320 | titik |
| Ukuran Modul ( L × T × T ) | 45,05 (L) x 77 (L) x 2,7 (T) | mm. |
| Titik Pitch ( P×T ) | 0,16875 x 0,16875 | mm. |
| Antarmuka | Bus Paralel 80-sistem 16bit | - |
| Paket IC Mengemudi | COG + FPC | - |
| Suhu Operasional | -20 ~ 70 | C |
| Suhu penyimpanan | -30~80 | C |
| Penggerak IC | OTM4001A | - |
| Modus LCD | TN/Normal Putih | - |
| Jenis Lampu Latar | LED PUTIH 4-MATI | PCS |
Daftar Produk:
| Tidak | Ukuran Inci | format titik | Ukuran Garis Besar (mm) | Kontras (Cr) | Lampu latar | Kecerahan | Antarmuka | Sentuh Panel |
| 1 | 1.44 | 128xRGBx128 | 32.36x38.0x2.6 | 500 | 1LED | 240 | SPI | - |
| 2 | 1.77 | 128xRGBx160 | 34.70x46.7x2.5 | 500 | 2LED | 320 | 8 bit paralel | - |
| 3 | 2.0 | 176xRGBx220 | 37.68X51.30X2.23 | 500 | 3LED | 180 | 8 bit paralel | - |
| 4 | 2.3 | 320xRGBx240 | 51.0X45.8X2.3 | 500 | 4LED | 280 | SPI | - |
| 5 | 2.36 | 480X234 | 55.2x44.75x2.9 | 250 | 2LED | 250 | 8bit RGB | - |
| 6 | 2.4 | 240xRGBx320 | 42.72x60.26x2.46 | 250 | 4LED | 200 | 8bits80 paralel | - |
| 7 | 2.7 | 240xRGBx320 | 62.60x45.70x2.45 | 400 | 4LED | 350 | 8bit RGB | RTP |
| 8 | 2.83 | 240xRGBx320 | 50X69.2X2.4 | 500 | 4LED | 250 | 8/16 bit paralel | RTP |
| 9 | 3.5 | 320xRGBX480 | 54.66X82.9X2.1 | 500 | 4LED | 380 | 18bit RGB + SPI | RTP/CTP |
| 10 | 4.3 | 480xRGBX272 | 105.5X67.2X4.2 | 500 | 6LED | 450 | 24bit RGB | RTP/CTP |
| 11 | 5 | 800xRGBX480/1024x600 | 120.7x75.8x4.3 | 400 | 2x5LED | 480 | 24bit RGB | RTP/CTP |
| 12 | 5.7 | 640xRGBX480 | 127.0X98.4X7.0 | 250 | 2x6LED | 700 | 18bit RGB | RTP/CTP |
| 13 | 6.2 | 800xRGBX480 | 155.2X88.2X6.5 | 600 | 3x7LED | 250 | 24bit RGB | RTP/CTP |
| 14 | 7 | 800xRGBX480 1024xRGBx600 | 164.9X100X7.2 | 500 | 7x3LED | 350 | 24bit RGB | RTP/CTP |
| 15 | 8 | 800xRGBX480 1024xRGBx600 | 183.0x141.0x6.2 | 500 | 9x3LED | 500 | 24bit RGB | RTP/CTP |
| 16 | 10.1 | 800xRGBX480 1024xRGBx600 | 235.0x143.0x5.0 | 600 | 13x3LED | 450 | LVDS | RTP/CTP |
B. Menghasilkan:
Dengan berbagai modul LCD dan TFT standar dan disesuaikan, BACKLIGHT.Kami menawarkan kepada pelanggan solusi dan teknologi yang paling cocok untuk aplikasi.
Untuk informasi lebih rinci tentang modul LCD TFT kami, jangan ragu untuk menghubungi kami:
Nona Fancy Zhang
Telp: + 86-769-22705821-815
Massa: +134 1284 8038 (whatsapp dan wechat)
Skype: +86 189 2546 1855
Email: fssales04@fsdzlcd.com
