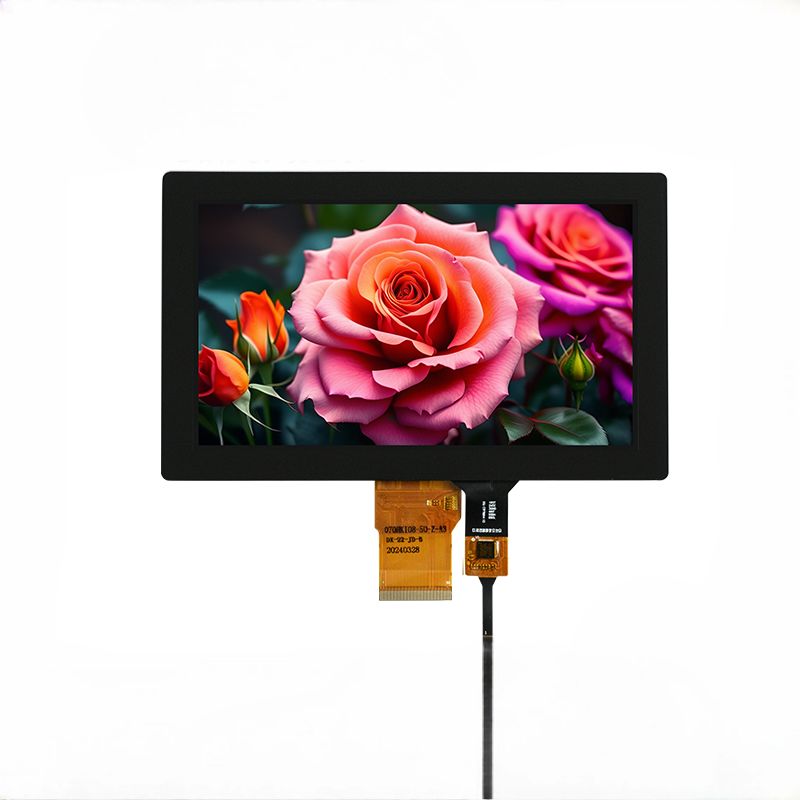

Name: OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brand: HongKong Guanke Industrial Limited
SKU: FS-TFT
Price: 3.10 USD
Availability: InStock

Rumah > Produk > modul lcd tft >

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Tempat asal:

dongguan, Cina

Nama merek:

Fangsheng

Sertifikasi:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Nomor model:

FS-TFT

Hubungi Kami

Minta Kutipan

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Rincian produk

Nama Produk:

OEM ODM Modul LCD TFT TFT 7 Inch dengan LVDS Interface Touchscreen 1000 NITS 7 Inch TFT LCD Display

kecerahan:

1000 nit

Antarmuka:

SPI/RGB/MIPI/LVD, dll.

Fitur:

Kisaran suhu yang luas, kecerahan tinggi, anti-interferensi, ketahanan guncangan, tahan lama

Kebiasaan:

PFC, CTP, kaca penutup, dll.

Aplikasi:

Panel Kontrol Otomasi Pabrik Tampilan Mesin CNC, dll.

Resolusi:

800x480 (khusus)

Menyoroti:

7 inch TFT LCD module with LVDS

7 inch TFT LCD touchscreen display

1000 nits TFT LCD control panel

Syarat Pembayaran & Pengiriman

Kuantitas min Order

500

Harga

$0.1-$8

Kemasan rincian

Tas gelembung + Blister + Kotak busa + Karton

Waktu pengiriman

3 ~ 5 Hari Kerja

Syarat-syarat pembayaran

L/C, T/T, D/A, D/P, Western Union, PayPal

Menyediakan kemampuan

200K Set / Bulan

Produk terkait

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Hubungi Sekarang

Deskripsi Produk

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels

Product Specifications

Attribute	Value
Product Name	OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brightness	1000 nits
Interface	SPI/RGB/MIPI/LVDS, etc.
Features	Wide temperature range, high brightness, anti-interference, shock resistance, durable
Custom	PFC, CTP, Cover glass, etc.
Application	Factory automation control panels, CNC machine displays, etc.
Resolution	800x480 (Custom)

Key Features

High brightness up to 800/1000/1500 nits for sunlight readability
Wide operating temperature from -30°C to +85°C for extreme environments
Ultra-low power consumption for energy-saving performance
High contrast ratio for vivid and sharp images
Fast response time (<20ms) for smooth video playback
High pixel density for crisp text and detailed graphics

Technical Parameters

Parameter	Specification
Resolution	800 × 480 pixels
Interface	LVDS
Driver IC	RM533CO + RM577C1
Viewing Angle	Free Viewing Angle (Free V.A)
Touch Support	Capacitive Touch Panel (CTP)
Operating Temp.	-30°C to +85°C (Wide Temperature Range)
Brightness	1000 nits (High Brightness)
Dimensions	165.40 × 104.59 × 7.73 mm
Active Area	152.40 × 91.44 mm
Key Features	Capacitive Touch Display, Wide Temp TFT, High-Brightness TFT
